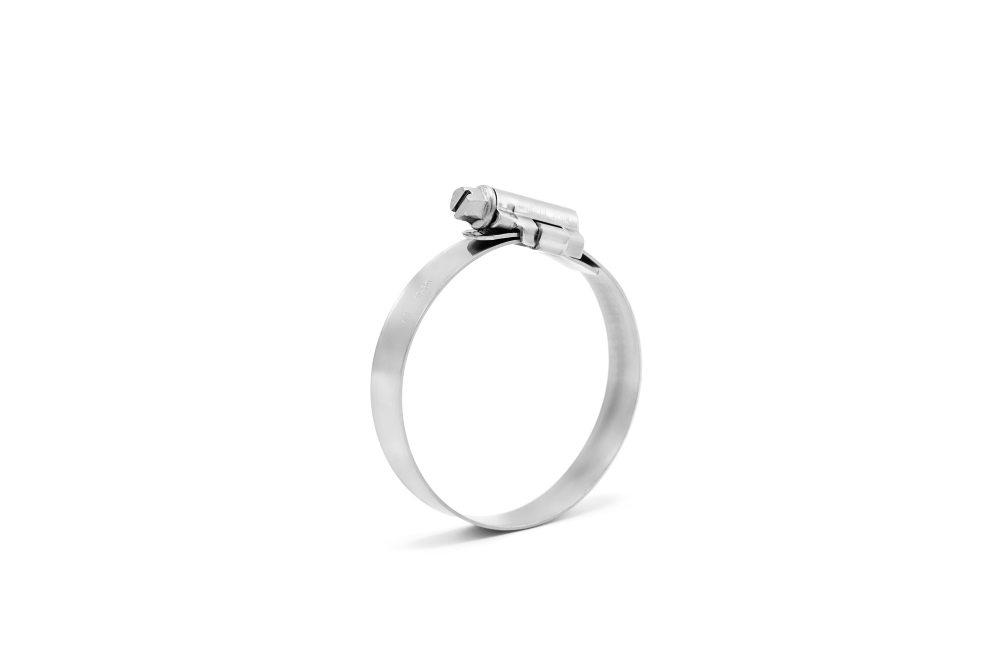

Mikalor Worm drive hose clamp 40-60mm/9mm Stainless Steel W3
USD 2.57
Article nr:
K120-40-60
- Fast deliveries
- Great support
- Worldwide shipping
Thanks to the special design of the housing and the high-strength screw, the Mikalor W3 (Stainless Steel) Worm-Drive hose clamp has excellent performance while at the same time being very compact.
This clamp is especially indicated for use in the automotive sector.
The cold-formed stamped 9mm band, smoothed on the underside, combined with the bevelled band edges protects the hose from any damage.
This hose clamp complies fully with the DIN 3017 norm and also with the EU 2002/95/EC directive.
(*) It is recommended to apply up to 75% of the maximum values contained in the table.
(**) The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.
Important! To choose correct clamp size, control that the hose outer diameter is within the clamping range specified in table.
This clamp is especially indicated for use in the automotive sector.
The cold-formed stamped 9mm band, smoothed on the underside, combined with the bevelled band edges protects the hose from any damage.
This hose clamp complies fully with the DIN 3017 norm and also with the EU 2002/95/EC directive.
(*) It is recommended to apply up to 75% of the maximum values contained in the table.
(**) The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.
Important! To choose correct clamp size, control that the hose outer diameter is within the clamping range specified in table.
Clamping range: | 40-60 mm |
Width: | 9 mm |
Fits do88 silicone hose with inner diameter: | 32-51 mm |
Hexagon head screw: | 7 mm |
Max thightening torque: | 6,5 Nm (*) |
Max pressure: | 30 bar (*) (**) |
Weight: | 31,6 g |
Material: | Band and Housing, Stainless Steel X6Cr17 (AISI 430) Screw, Stainless Steel (AISI 304 CU) |
Corrosion resistance: | 200 hours salt Spray (ASTM B-117) |
