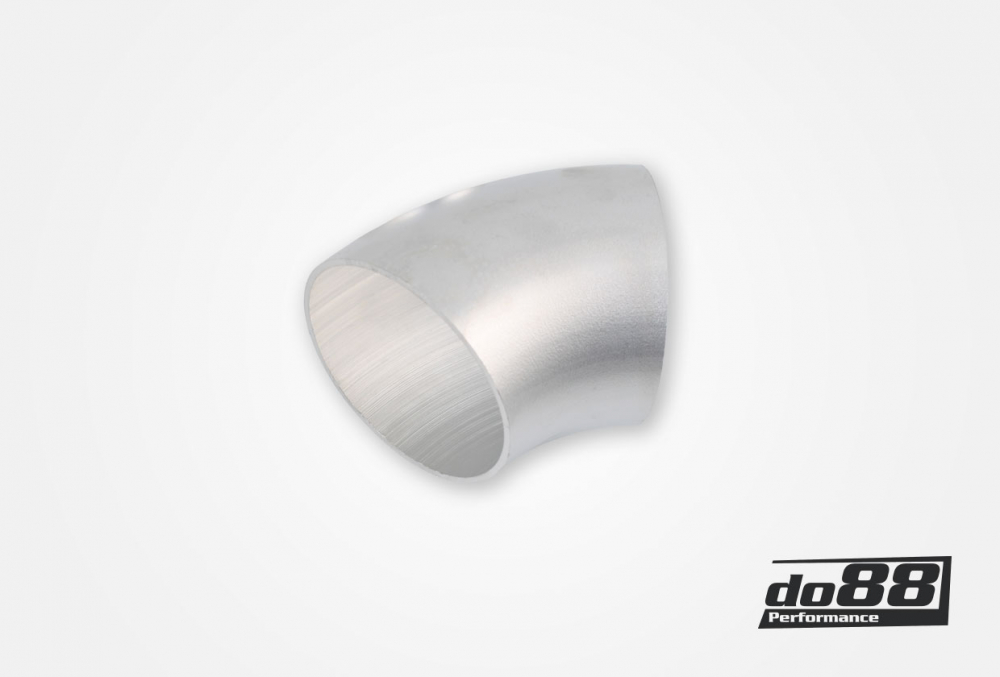

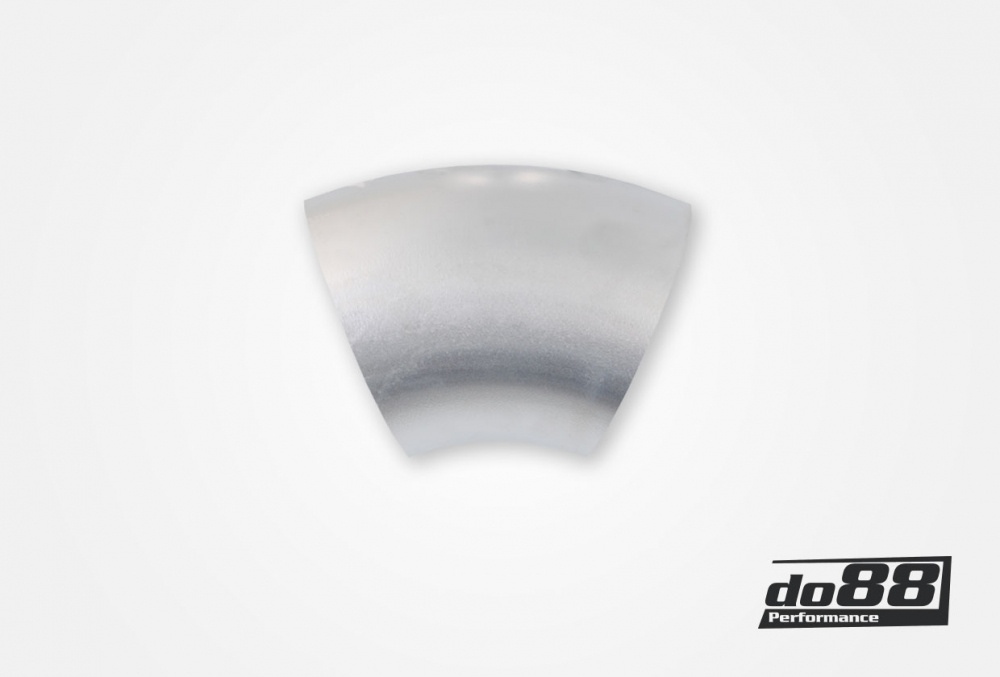

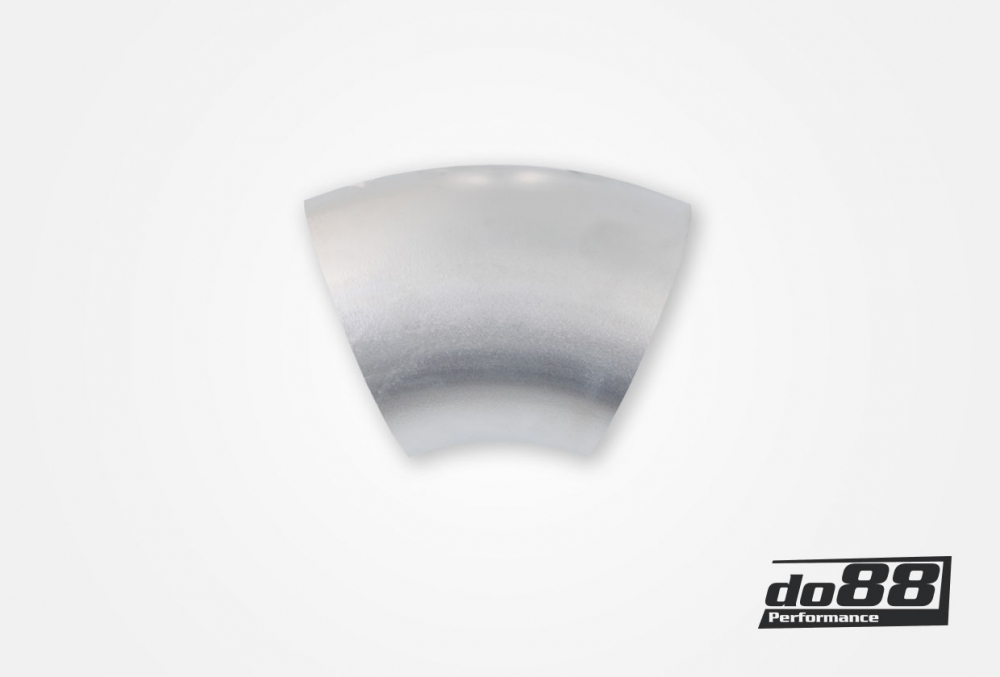

Name: Aluminum pipe 45° 100x3 mm, long radius
Brand: do88
SKU: A3B45G100-L
Price: 48.05 USD
Availability: InStock

Aluminum pipe 45° 100x3 mm, long radius in the group Aluminium Pipes / 3mm wall thickness / 45 degrees, long radius at do88 AB (A3B45G100-L)

Aluminum pipe 45° 100x3 mm, long radius

do88

USD 48.05

Article nr:

A3B45G100-L

Add review

Customer's grade at Aluminum pipe 45° 100x3 mm, long radius in the group Aluminium Pipes / 3mm wall thickness / 45 degrees, long radius at do88 AB

(0 pc.)

Fast deliveries
Great support
Worldwide shipping

Aluminium piping with a raw, T6060 finish. 3 millimeter wall thickness makes it suitable for welding and constructing own applications. The pipe would benefit from either being polished or painted after the welds have been completed. All in order to prevent the pipe aluminum from oxidating. To ensure your hose from not popping off, making a nice and secure rounding, a hose joiner can be cut in half and welded on. Fitting hose joiner you can fins under Accessories in the bottom of this page. Very high quality!

These bends have a longer center radius, which is to prefer if the space allows. Bends with a longer center radius have better airflow properties than bends with a shorter radius.

Bend:	Long radius, 45 °
Outer diameter (mm):	100 mm
Outer diameter (inch):	4 "
Leg length (see picture):	0 mm
Wall thickness:	3 mm
Center-line radius:	133,5 mm
Material:	6060
Possible to weld:	Yes
Swaged ends:	No
