Name: Volvo 850/SVC70 Turbo Pressure pipes ,red hoses ,standard throttle body
Brand: do88
SKU: TR-850-R-63
Price: 399.97 USD
Availability: InStock

Volvo 850/SVC70 Turbo Pressure pipes ,red hoses ,standard throttle body in the group By vehicle / Volvo / 850 S70 V70 C70, P80 (1992-1998) at do88 AB (TR-850-R-63)

Volvo 850/SVC70 Turbo Pressure pipes ,red hoses ,standard throttle body

Volvo 850/SVC70 Turbo Pressure pipes ,red hoses ,standard throttle body

do88

USD 399.97

Article nr:

TR-850-R-63

Add review

Customer's grade at Volvo 850/SVC70 Turbo Pressure pipes ,red hoses ,standard throttle body in the group By vehicle / Volvo / 850 S70 V70 C70, P80 (1992-1998) at do88 AB

(0 pc.)

Fast deliveries
Great support
Worldwide shipping

The best Volvo 850 C70 S70 V70 performance intercooler pipe kit on the market!

This kit is for you with high horsepower goal and wants to upgrade to the absolute best! Our pressure pipes has considerably better airflow than the stock pipes, this we have verified in several tests both in car and in our own SuperFlow SF-1020 flow bench.

Significant advantages with do88 pressure pipes (OEM pipes):
- Air flow at 0,15bar/2,18psi pressure drop: 452CFM (342CFM), do88 32% higher! See diagram below!
- The total length of the do88 pipes is 550mm shorter than the OEM pipes which increases the throttle respons!
- Designed to handle high pressure and temperatures!
- *Fits all cars in list below!

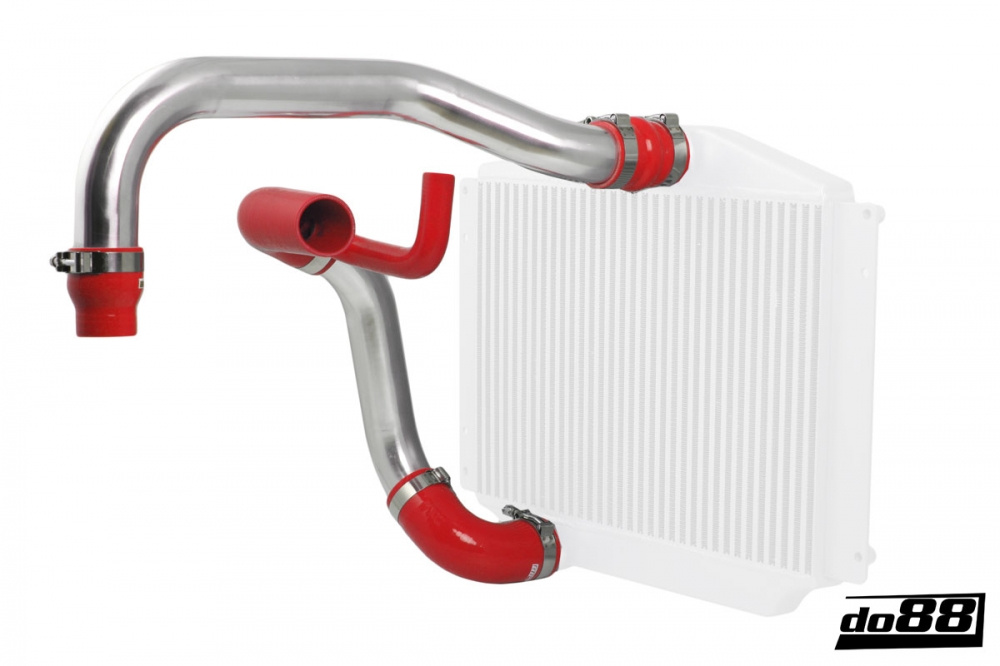

The pressure pipes are manufactured in 2,5” mandrel bent seamless aluminum pipes. These pipes reverse the flow through the intercooler, the air that goes to the throttle body is taken from the bottom of the intercooler. This makes the total length of the do88 pipes 550mm shorter than the OEM pipes.

Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!

Always remember that the OEM intercooler pipes and hoses was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM pipes and hoses don’t have the performance you need. So only after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes!

do88 pressure pipes comes with all hardware necessary for installation.

* The air guide to the air filter box will not fit together with these intercooler pipes. It can be fitted if you cut the hose end against the throttle body about 25mm (1 inch). Click here to see how to cut a silicone hose.

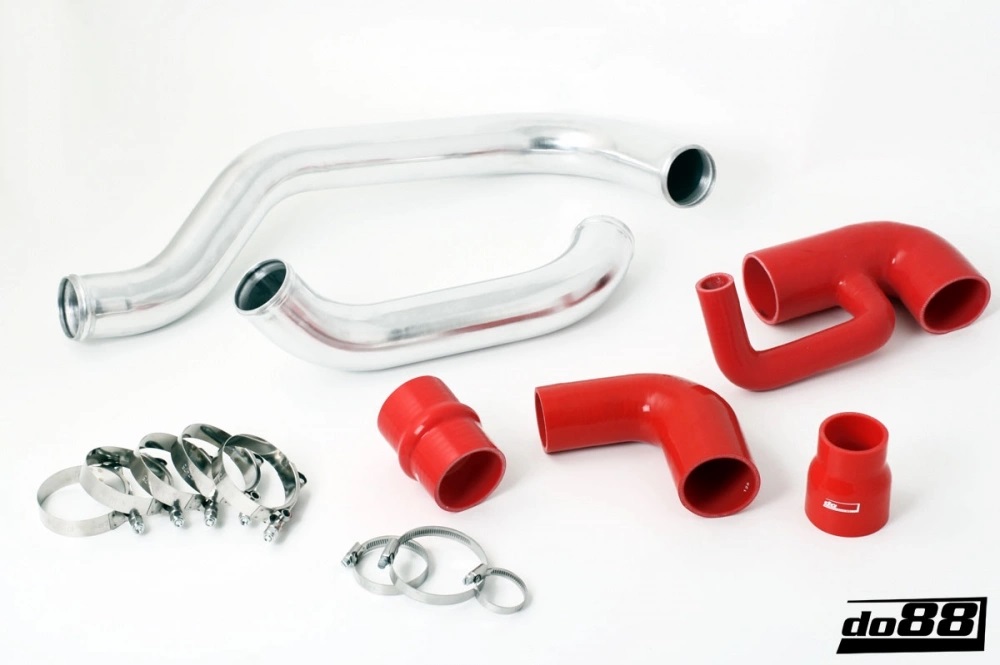

Included parts in this kit:
1. Two pressure pipes
2. Four silicone hoses
3. Nine hose clamps

When you order this kit, there are two choices that needs to me made:

1. Color:
Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car.

2. Throttle body size:
"63mm Standard" if you have the original throttle body on your car.
"76mm ( 3inch )" if you have switched to a 3 inch throttle body .

Fits:

Volvo 850
Year models: 1994-1997
Engine:
- All petrol turbo engines
- 2.0T 2.3T 2.4T 2.5T T5 T5-R
Fits both cars with automatic and manual transmission.

Volvo C70 S70 V70 XC70
Year models: 1998
Engine:
- All petrol turbo engines
- 2.0T 2.3T 2.4T T5
Fits both cars with automatic and manual transmission.

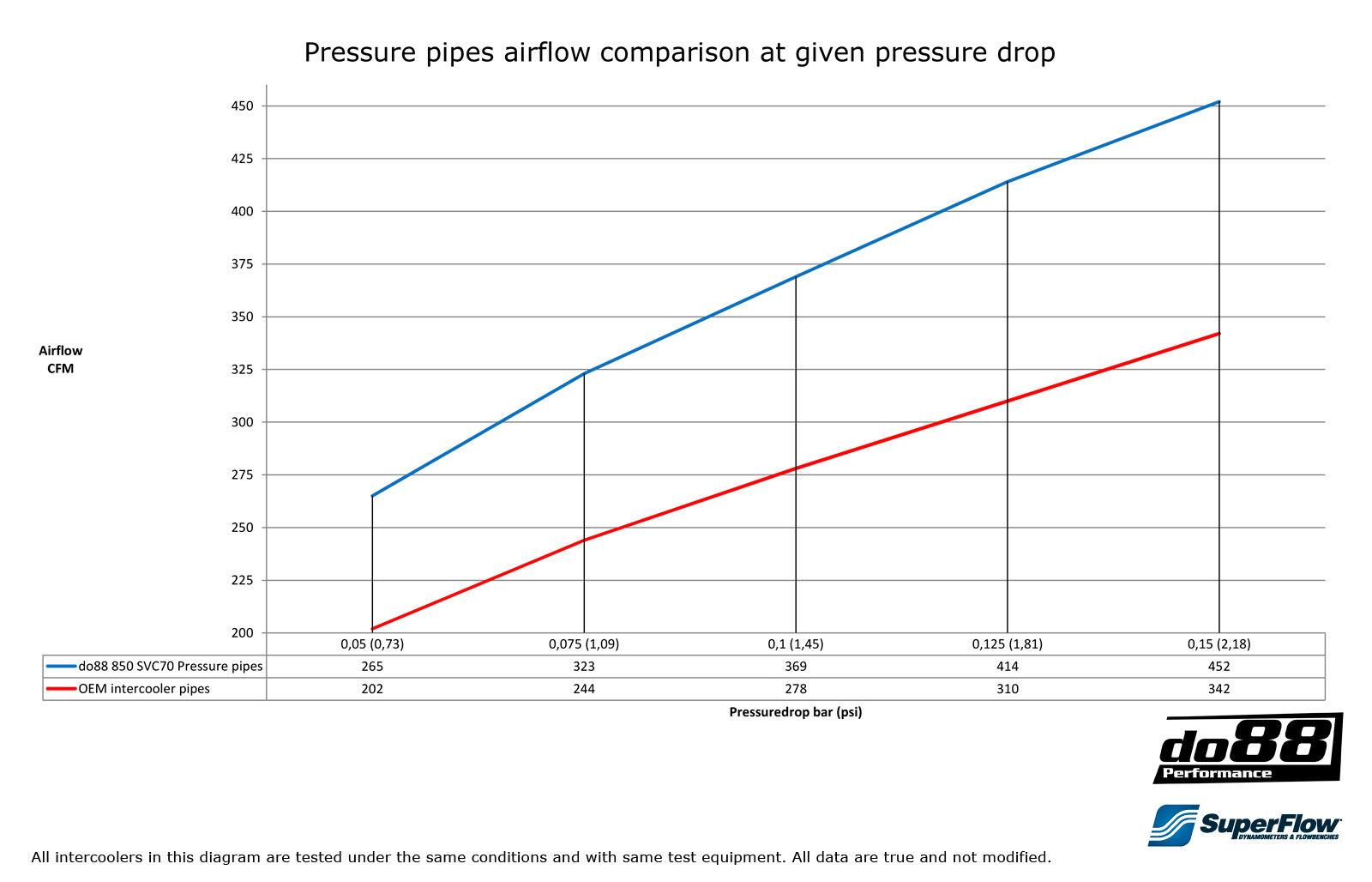

This diagram shows the charge air flow at different pressure drops of do88 pressure pipes compared to OEM pipes:
